DOSIMETRIX® hybrid
Hybrid coolant management system — automatic dosing, digital hand measurement and IoT monitoring in one economical system.
- ·Automatic concentration control — up to 100 tanks
- ·SmartFusion highest emulsion quality - Long coolant service life
- ·No inline sensor in the coolant — no contamination problem
- ·Turnkey systems — throughout Europe
DPMA-protected hybrid measuring and dosing logic
The hybrid measuring and dosing logic of DOSIMETRIX® is jointly registered by Brisco Systems and GIMAT as a utility model at the German Patent and Trademark Office (DPMA). 1:1 reproductions are excluded.
The only ATAGO Service Center in Germany — and Central Europe
GIMAT GmbH is the only authorised ATAGO Service Center in Germany — and simultaneously the only ATAGO Service Center in Central Europe. Sales, calibration and service of PAL refractometers directly from the manufacturer partner.
How does DOSIMETRIX® hybrid work?
eMix1500 DOSIMETRIX® Edition
The fully electronic mixer eMix1500 DOSIMETRIX® Edition calculates the required concentration for each tank individually before every mixing cycle. For this, the concentration must be measured approximately twice a week with the digital Atago PAL1 refractometer. The measured values are automatically transferred from the PAL1 device via the smartphone app to the eMix1500. No manual reading of measured values required. Using a special membrane pump system, the eMix1500 mixes the exact required amount of concentrate with make-up water.
Each tank is filled individually and precisely via the main emulsion line with tank valves.
Multiple protection functions against overfilling — even for CNC machines with large travel volumes.
Built-in algorithms permanently guarantee consistent concentrations in all tanks.
All dosing and filling data is automatically recorded and stored in the FLUIDAS portal.

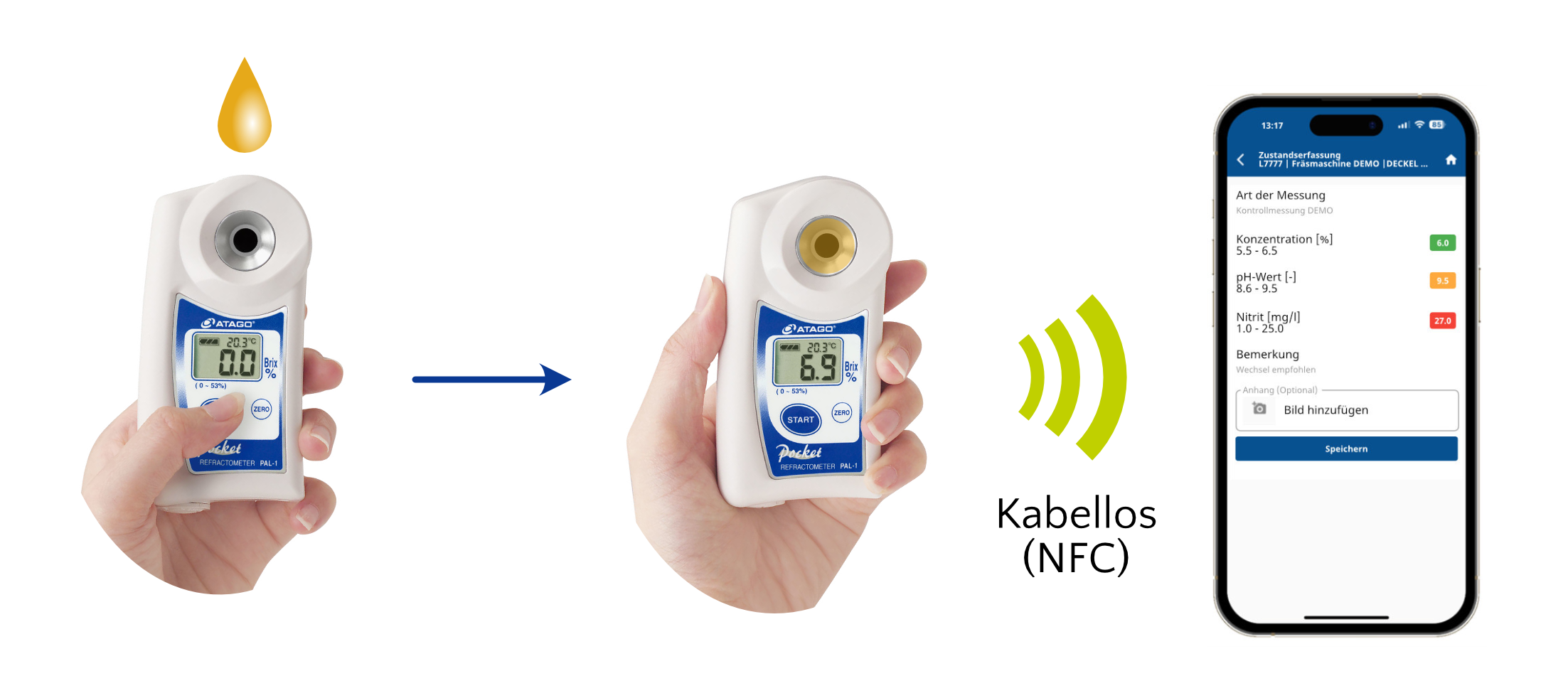

Measurement transfer via NFC — contactless and error-free
The concentration is measured directly at the machine using the digital Atago PAL1 refractometer. The measured value is then transferred contactlessly via NFC to the smartphone app and from there automatically forwarded to the eMix1500 — without manual reading, without typing, without transmission errors.
Initial and Top-up Filling — No Second System Needed
The eMix1500 DOSIMETRIX® Edition handles both top-up filling and initial filling with high filling capacity. With most competitors, filling capacity drops sharply as concentration increases — making costly second systems necessary for initial fills.
With DOSIMETRIX® this is not the case — one single system for top-up and initial filling, at consistently high capacity.
SmartFusion — Maximum Emulsion Quality for Longer Coolant Service Life
SmartFusion produces an exceptionally fine and uniform emulsion. This high emulsion quality ensures more stable cooling, slower tool wear and significantly longer coolant service life. The result: massively reduced operating costs. The emulsion quality has been confirmed by an independent measurement report from OST Eastern Switzerland University of Applied Sciences.
Your Advantages at a Glance
Economical, hybrid, ready to use immediately.
Automatic Control
Individual automatic control of concentration and level of up to 100 tanks.
Digital Hand Measurement
Simple concentration and pH value recording with digital handheld devices with NFC transfer to the Brisco App. More reliable and efficient than fully automatic measurements.
Visualization & Analysis
Comprehensive visualization and analysis with many additional functions in the FLUIDAS portal.
Fast Installation
Very easy and quickly installable solution — installed in hours, not weeks.
Hybrid Coolant System for Modern CNC Machining
DOSIMETRIX® hybrid combines automatic dosing, digital hand measurement and IoT monitoring in one single, economical system — no inline sensor in the coolant, no measurement drift, no daily maintenance.
SmartFusion Mixing Technology – Highest Emulsion Quality
The SmartFusion technology produces fine-dispersed emulsions with less than 500 nanometer droplet size (D50 typically 170 nm) — significantly finer than conventional mixers. The result: stable emulsions, less concentrate consumption, longer service life.
Coolant-Brand-Independent – Free Choice of Concentrate
DOSIMETRIX® hybrid works with any commercially available coolant concentrate. No ties to a single manufacturer, no system conversion when changing products — full flexibility for your production.
Why DOSIMETRIX® hybrid?
Up to 100 Tanks
Individual concentration per tank — no competitor achieves this
No Sensor in Coolant
No contamination issues, no measurement drift, minimal maintenance
Coolant Independent
Works with any coolant manufacturer
Installation in Hours
No piping, no infrastructure — ready to use immediately
ROI in Months
Investment significantly below fully automatic systems
Brisco Analysis Portal – Your Digital Fluid Management Platform
The Brisco Analysis Portal is the integrated software platform for complete fluid management. Available as web application, iOS/Android app and tablet version. Real-time dashboards, condition recording, inventory management, volume and consumption analysis and extensive archiving functions — all in one platform.
Web Dashboard
Complete overview in the browser (fluidas.one)
Mobile App
iOS & Android, Dark/Light Mode
Tablet-optimized
Ideal for use in production
QR Code Scanner
Fast tank identification by scan
Locations
Interested in DOSIMETRIX® hybrid?
We are happy to advise you — free and without obligation.
